Circular Connectors

Y50 Series
Request a Quote

Our Y50 series circular connectors encompasses metric, imperial, and power connectors, meticulously engineered to meet the requirements of GJB101A—97, GJB598A—96, MIL-C-26482, and other industry standards. Our connectors are renowned for their swift connection and detachment, compact size, lightweight design, superior sealing performance, and exceptional tensile strength.

The Y50 series connectors offer seven installation methods for plug cable hoods, with both shielded and unshielded shell options available. Cable outlets include straight and angled configurations, while the termination method is welding.

The Y50 series connectors offer multiple variations and encompass exceptional features, including resistance to salt spray, moisture, and mold. They are specifically designed for applications in strategic and tactical systems, as well as field operations, enabling seamless transmission of electrical signals and power.
  • Circular Connectors
  • Circular Connectors

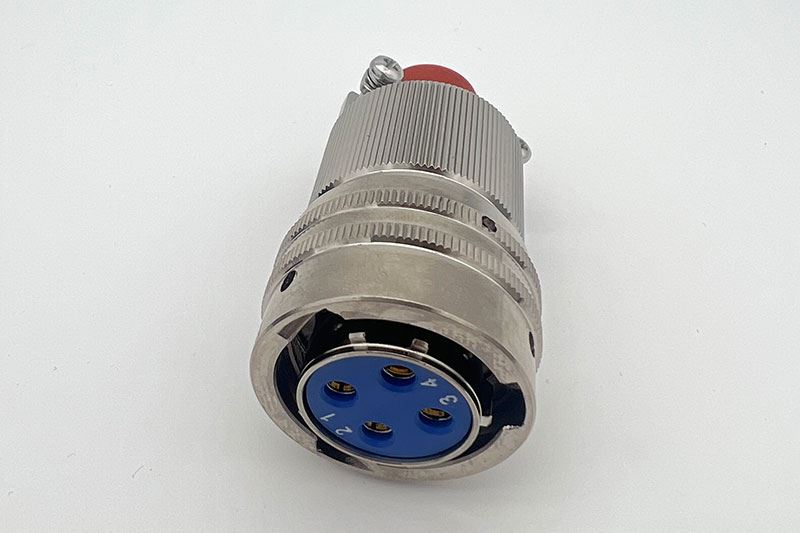

Y50D-1404TK2
  • Circular Connectors
  • Circular Connectors

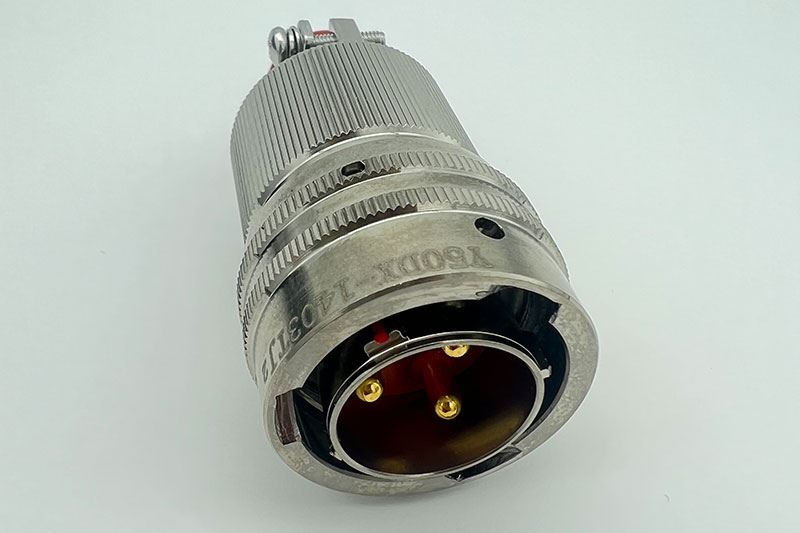

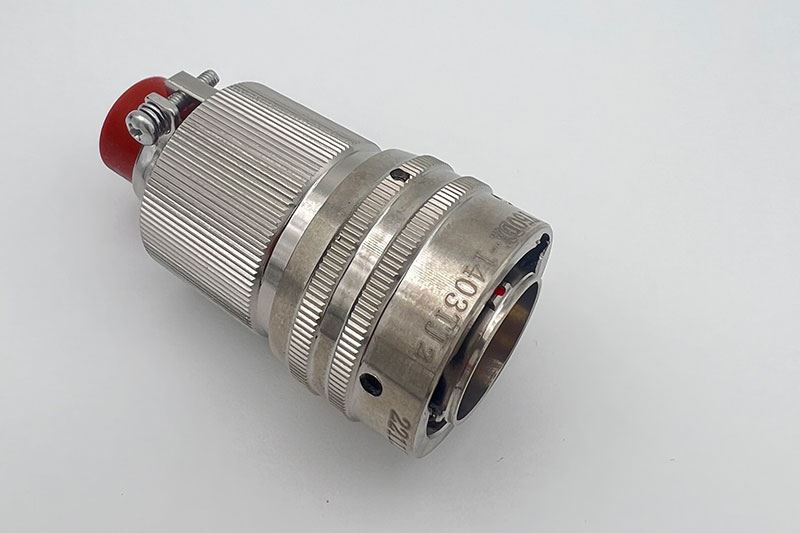

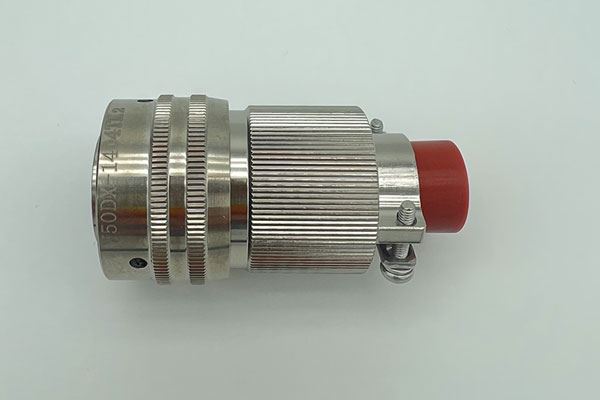

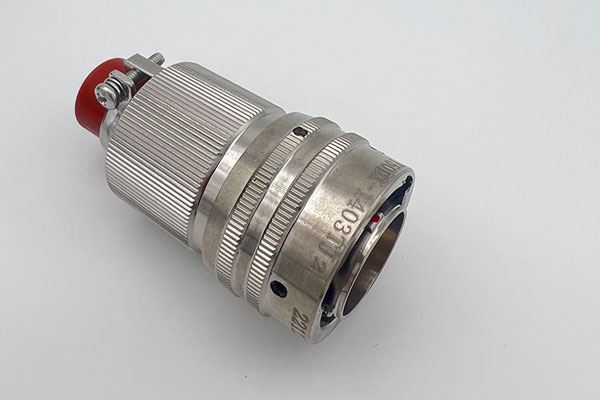

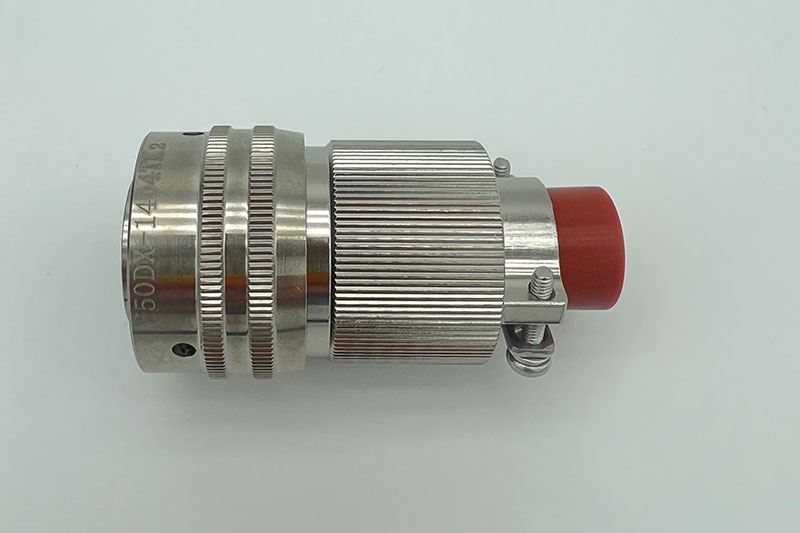

Y50DX-1403TJ2
  • Circular Connectors
  • Circular Connectors

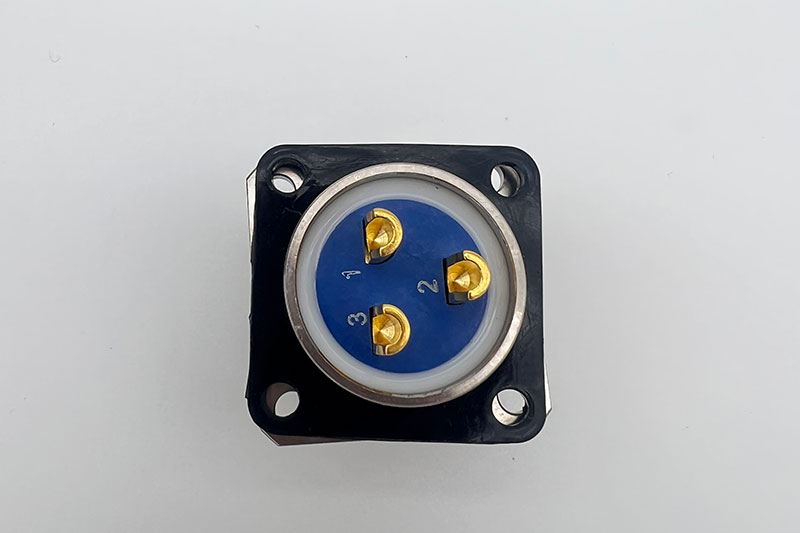

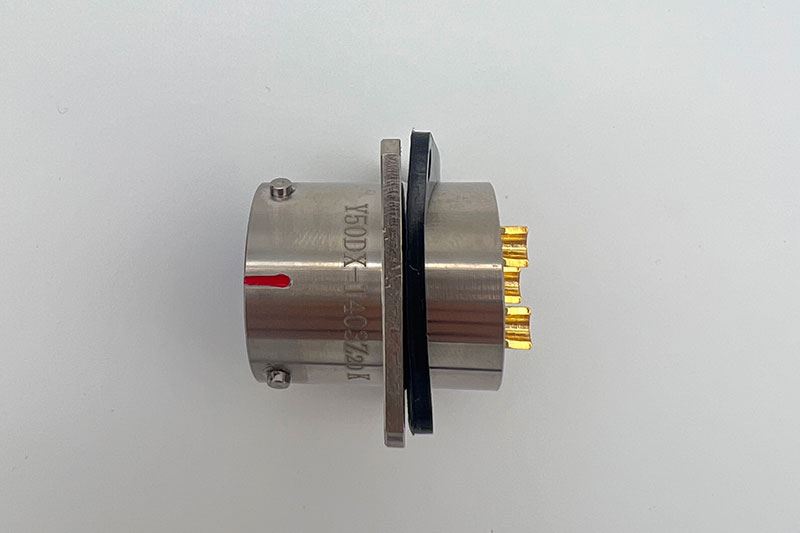

Y50DX-1403Z20K
  • Circular Connectors
  • Circular Connectors

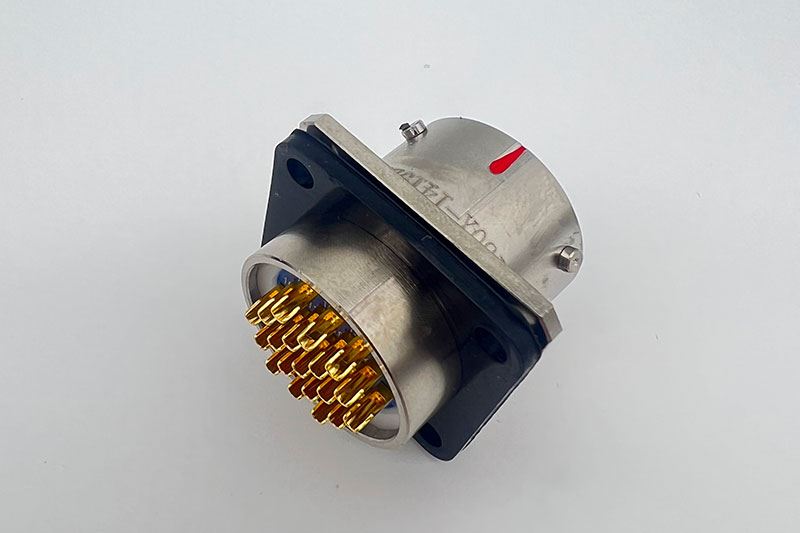

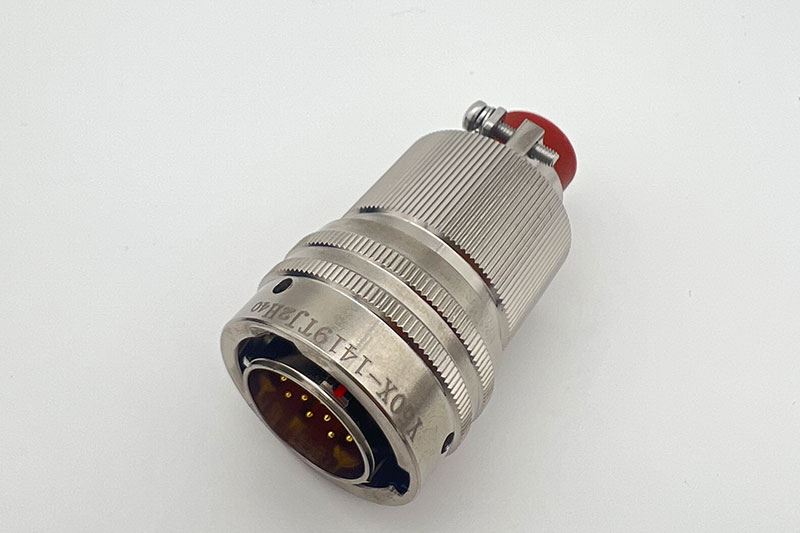

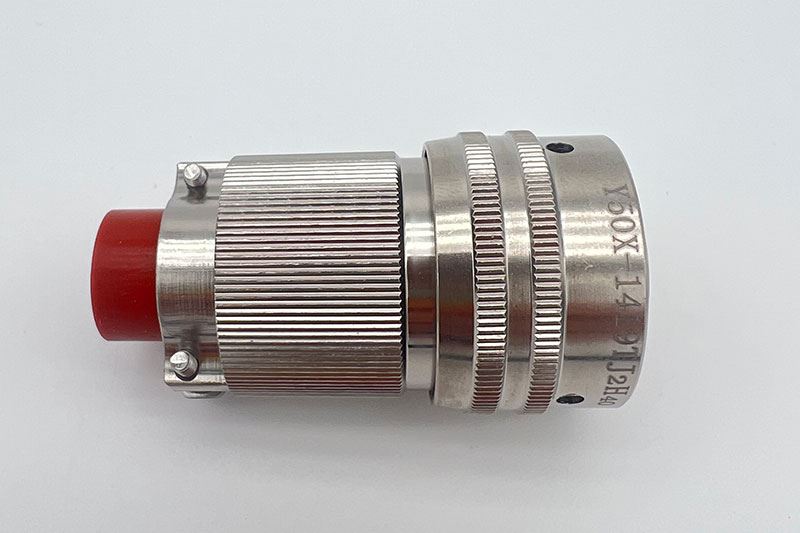

Y50X-1419TJ2
  • Circular Connectors
  • Circular Connectors

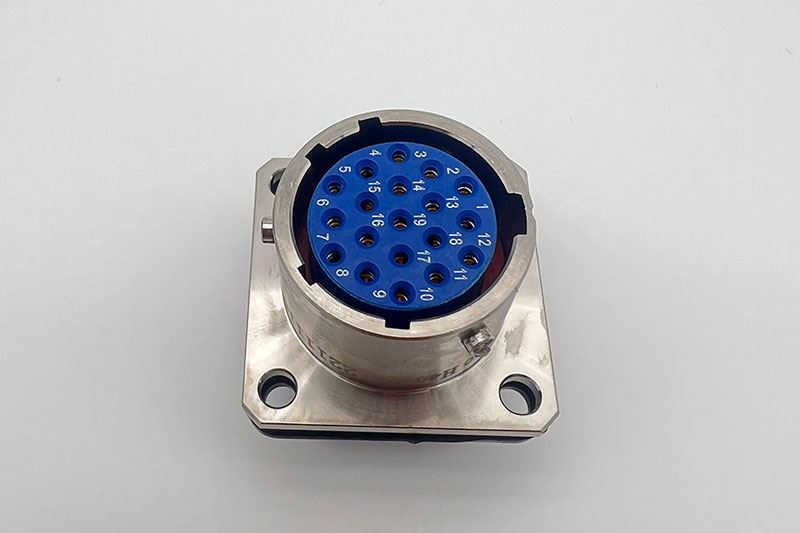

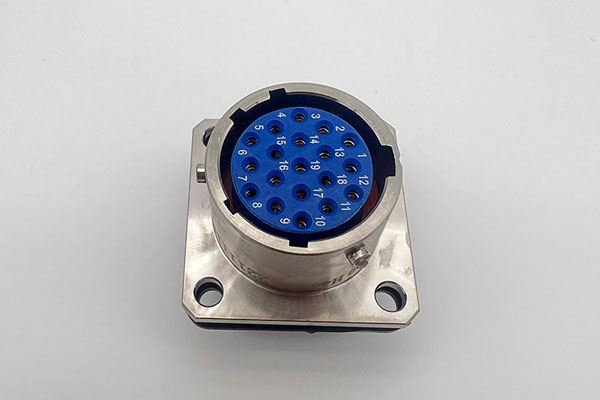

Y50X-1419ZK10
Main Technical Performance
Environmental Performance
  • Operating Temperature: -55°C to +125°C
  • Operating Altitude: Up to 30,000 meters above sea level
  • Vibration Resistance: Frequency range of 10Hz to 2000Hz, acceleration of 196m/s²
  • Shock Resistance: Acceleration of 490m/s²
  • Constant Acceleration: 490m/s²
  • Sealing Performance: Pressure resistance of 0.2Mpa
Mechanical Performance of Circular Connectors
  • Shell: High-strength aluminum alloy material, stainless steel
  • Unshielded Coating: Anodizing colors, black H, green L (Ni, Sand Nickel) S: Nickel plating (Zn, Zinc)
  • Insulator: Heat-resistant thermoplastic material
  • Contact Material: Gold-plated copper alloy
  • Mechanical Lifespan: 500 cycles
Electrical Performance
Working voltage, withstanding voltage, and insulation resistance:
Working Environment Rated Voltage (V) Withstanding Voltage (V)
Insulation Resistance (mΩ)
Ambient Temperature and Pressure 500 1500 ≥ 3000
Damp-Heat 500 500 ≥ 20
High Temperature 250 ≥ 500
Low Pressure (4.39kpa) 300 375 –
Contact resistance and current rating:
Diameter (mm) Resistance (mΩ) Current (A)
Ø 0.8 ≤ 6 3
Ø 1.0 ≤ 5 5
Ø 1.5 ≤ 3 10
Ø 2.0 ≤ 2 20
Ø 2.5 ≤ 1.5 25
RFI Attenuation
Frequency (MHz) 100 150 200 300 400 600 800 1000
Attenuation (dB) 65 60 60 55 55 50 45 45

Shell-to-shell electrical continuity: Unshielded ≤ 200mΩ, Shielded ≤ 5mΩ
With a team of highly skilled R&D professionals and certifications in high-tech enterprise and quality management systems, Kaida exports its products to over 30 countries worldwide, earning a solid international reputation.
